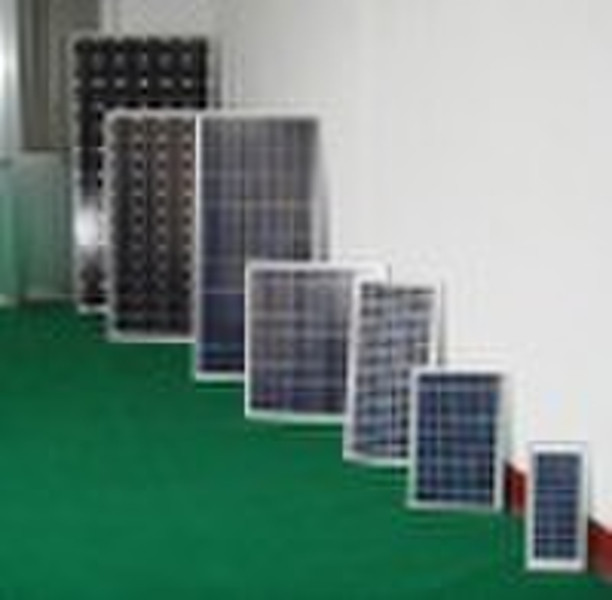

Poly solar panel price

Poly solar panel price

Shanghai, China
Production capacity:
50000 Piece / Day
Shanghai, China
Company
86-21-64920306
Jane Yu
Contact person

Basic Information

Place of Origin Shanghai China (Mainland)
Brand Name Luxon
Model Number LX-30P
Size 15.6*15.6cmsize of Cell
Number of Cells 18
Max. Power 30W
Material Polycrystalline Silicon
Solar Cell: Polycrystalline Sillicone 156*156mm Poly solar panel price No. Of cells and connections: 2*18=36pcs Junction Box: 1p54rated Warranty: PM is not less than 90% in 10years and 80% in 20years. Resistances:227g stell ball fall down from 1.0meter hight and 60m/x wind. Noct: 48celsius ± 2 celsius Current temperature coefficient : 0.06± 0.01%/K Voltage Temperature Coefficient: -(78 ± 10)MV/K Power temperature coefficient: -(0.5 ± 0.05)%/K Maximum Power (Pm) : 30W Power Tolerance: ±5% Voltage at max Power(vmp) 17.2V Current at max power(Imp) : 1.74A Open circuit voltage(voc) : 21.6V Short circuit current(isc) : 1.91A Operating Temperature: -40celsius to + 85celsius Maximum system Voltage: 715V Maximum Series Fuse Rating: 8A Standard Test Condition: Irrandiance 1000W/m2, Module temperatture 25 celsius, AM=1.5

Delivery terms and packaging

Packaging Detail: 10pcs/ctn Delivery Detail: 30working days
Port: Shanghai

Payment term

Letter of credit

Telegraphic transfer

Western Union
